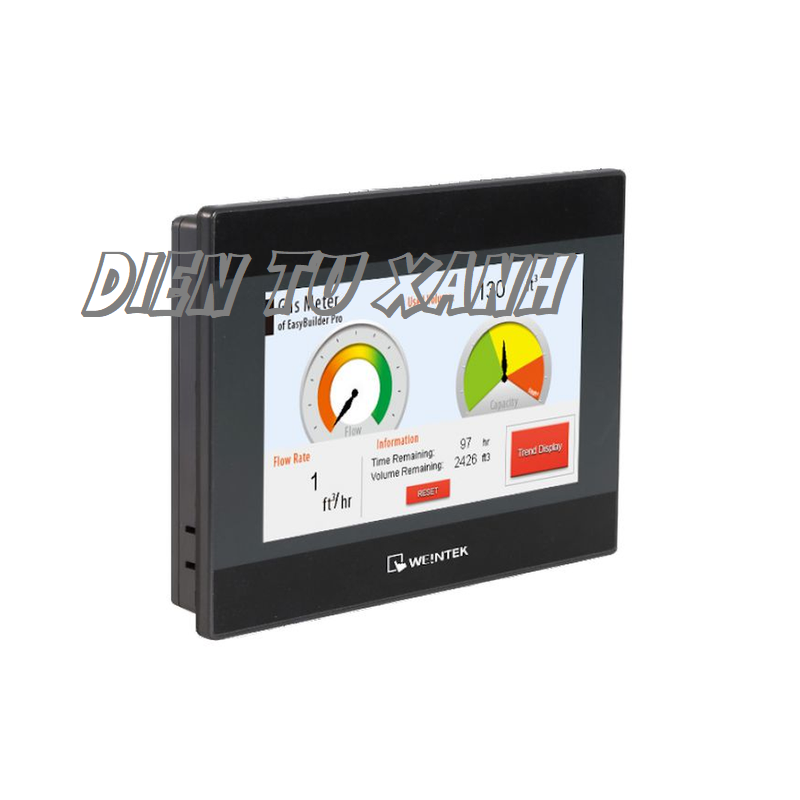

MIÊU TẢ Màn Hình Weintek LCD MT8071iP HMI 7 Inch

Weintek MT8071iP is a 7-inch 800×480 TFT LCD HMI featuring a slim design, fan-less cooling, RS-485 communication, and an industrial-grade front panel suitable for automation applications.

• 7″ 800 × 480 TFT LCD

• Slim design

• Fan-less cooling system

• COM2 RS-485 (2W/4W) supports MPI 187.5K

• Built-in power isolation

MIÊU TẢ THÔNG SỐ KỸ THUẬT

Display

• 7″ TFT LCD, resolution 800 × 480

• Brightness 450 cd/m², contrast ratio 500:1

• LED backlight, lifetime > 30,000 hours

• 16.7 million colors

• Viewing angle (T/B/L/R): 60° / 70° / 70° / 70°

• Pixel pitch: 0.1926 (H) × 0.179 (V) mm

Touch Panel

• 4-wire resistive touch panel

• Accuracy: ±2% of active area (X/Y)

Memory & Processor

• Dual-core RISC processor

• 256 MB Flash, 128 MB RAM

Communication & I/O

• USB Host 2.0 × 1

• Ethernet 10/100 Base-T × 1

• COM1: RS-232 (4-wire)

• COM2: RS-485 (2-wire / 4-wire)

• Built-in RTC

Power

• Input power: 24 VDC ±20%

• Power consumption: 450 mA @ 24 VDC

• Built-in power isolation

• Voltage withstand: 500 VAC (1 minute)

• Insulation resistance: >50 MΩ at 500 VDC

Mechanical

• Enclosure: Plastic

• Dimensions (W × H × D): 200.4 × 146.5 × 34 mm

• Panel cutout: 192 × 138 mm

• Weight: Approx. 0.52 kg

• Mounting: Panel mount

Environment

• Front panel protection: NEMA4 / IP65 compliant

• Operating temperature: 0 ~ 55°C

• Storage temperature: -20 ~ 60°C

• Relative humidity: 10% ~ 90% (non-condensing)

• Altitude: Below 3,000 m (70.1 kPa)

• Vibration endurance: 10–25 Hz, 2G (X/Y/Z directions)

Certification & Software

• CE certified

• Programming software: EasyBuilder Pro

• EasyAccess 2.0 support (optional)

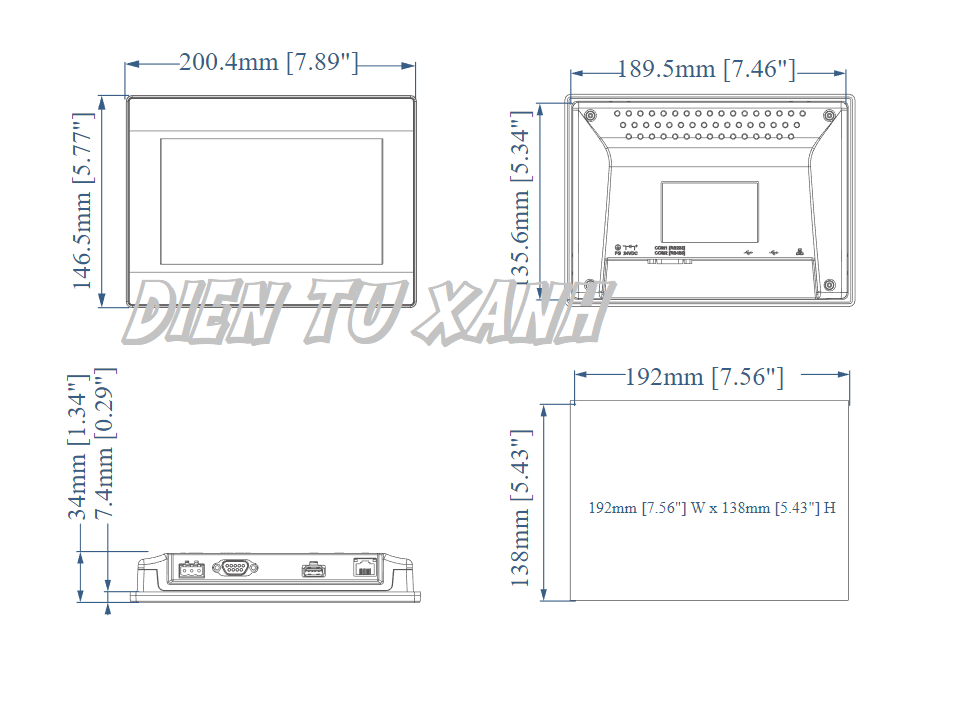

KÍCH THƯỚC VÀ MÔ TẢ NGOẠI VI
