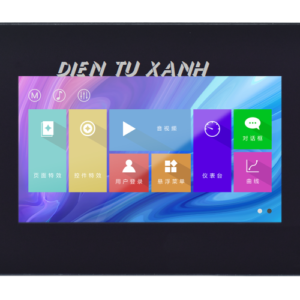

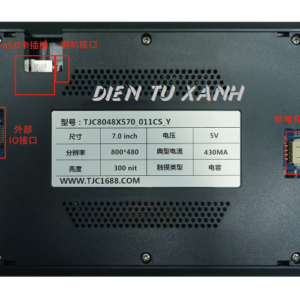

TJC8048X570_011C_Y – Màn hình 7.0 INCH HMI TJC

ĐẶC ĐIỂM MÀN HÌNH TJC8048X570_011C_Y

• TJC8048X570_011C_Y is a Human Machine Interface （HMI） solution combining an onboard processor and memory touch display with Nextion Editor software for HMI GUI project development. Using the TJC Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider etc.) and ASCII text-based instructions for coding how components interact at the display side. TJC HMI display connects to peripheral MCU via TTL Serial (5V, TX, RX ,GND) to provide event notifications that peripheral MCU can act on, the peripheral MCU can easily update progress and status back to Nextion display utilizing simple ASCII text-based instructions.

  The X5 Series products have more powerful hardware in terms of MCU, Flash storage and SRAM compared with X2, X3…. What’s more and new? The audio, video and animation play functions enrich user’s project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent components, page loading effect, component Move and Drag .etc.

  Package include: TJC8048X570_011C_Y HMI Display*1.

  Note: the small power supply test board and connecting wire inside the package allow you to test if the electrical supply is enough or not. See the image below on how to use it.

CHỨC NĂNG SẢN PHẪM

PHÂN BIỆT CÁC MODEL

Note: TJC8048X540 model (86 boxes) only has capacitive screen and does not support TTL/232 switching. You can choose TTL or 485 interface (the 485 version is a wide voltage power supply).

Note: The FPC version of X2 has no external IO interface (and no PWM).

Note ①: The animation playback function can be replaced by a picture control plus a timer.
