Board phát triển Ethernet W5500EVB-M3
1.740.000₫
Ethernet W5500EVB-M3: W5500-EVB-M3, W5500 Evaluation Board with STM32F103RCT6 + W5500 design, based on the ARM Cortex-M3 platform.
Miêu Tả Ethernet W5500EVB-M3
W5500-EVB-M3, W5500 Evaluation Board with STM32F103RCT6 + W5500 design, based on the ARM Cortex-M3 platform..
Chức năng sản phẫm Ethernet W5500EVB-M3
Support for hardware TCP/IP protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
– Supports eight independent ports (Socket) while communication
– Support power-down mode
– Wake on LAN
– Support for high-speed serial peripheral interface (SPI Mode 0,3)
– Internal 32K byte receive buffer
– Built-in 10BaseT / 100BaseTX Ethernet physical layer (PHY)
– Supports auto-negotiation (10/100-Based full / half duplex)
– Does not support IP fragmentation
– 3.3V operating voltage, I / O port 5V voltage signal;
– LED status display (full / half duplex, network connection, network speed, active)
– 48-pin LQFP lead-free package (7x7mm, 0.5mm pitch)
| Module | Device | Description | Remarks |
| Core Board | TCP/IP Core | W5500 | Hardwired TCP/IP Software Stack |
| MCU | STM32F103RCT6 | ||
| EEPROM | AT24C16 | 4K E2C | |
| J1, J2 pin | external pin | 2.54mm 12*2 | |
| Connectors | Network Transformer | B-TRC1188NLE | |
| RJ-45 | MAG Jack | without transformer and LED | |
| Regulator | LM1117-3.3 | ||
| USB to RS232 chip | FT232RL | ||
| LED indicator | Link，ACT，Speed | ||
| J3，J4 pin | External pin | 2.54mm 12*2 | |
| P3 pin | J-Tag socket | 2.54mm 10*2 | |
| Button | Direct Push Button | 6 piece |

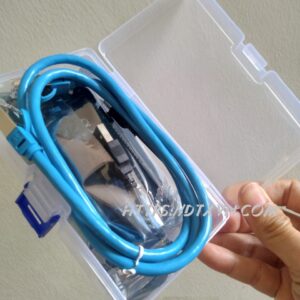

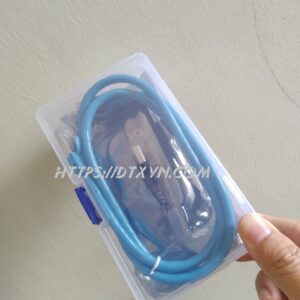

Bộ sản phẩm Ethernet W5500EVB-M3
01. Board W5500EVB-M3
02. USB Mini cable
03. Ethernet Cable
Tài liệu
| Trọng lượng | 1 kg |
|---|---|
| Kích thước | 30 × 30 × 5 cm |
