Miêu Tả EV2300 HPA002 Texas Instruments

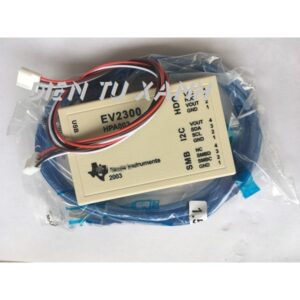

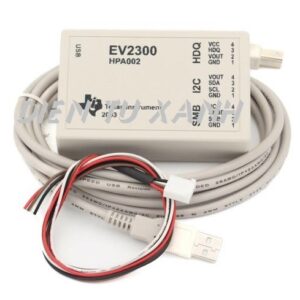

- The EV2300 HPA002 is a USB-based interface board for a PC that can be used to evaluate battery fuel gauge circuits designed with Texas Instruments’ ICs.
- The EV2300 has connections on it for a USB cable and also accepts inputs from a battery fuel gauge circuit’s communication port (SMBus or HDQ). By running the appropriate PC software for the corresponding fuel gauge IC, the EV2300 interface board allows the user to evaluate the battery fuel gauge circuit.
Chức năng sản phẫm EV2300 HPA002 Texas Instruments
- USB-based interface board for evaluation of battery fuel gauge circuits developed with fuel gauge ICs using the HDQ and SMBus communication protocol.
- Provides interface between intelligent battery circuit and a Windows-based PC.
- Connects to the USB port of a PC.
- Allows for on screen display and programming of gas gauge register functions when used with the appropriate PC software.
Board Type | Fully Populated |
Main Purpose | DC/DC, Step Down with LDO |
Regulator Topology | Buck |
Outputs and Type | 5, Non-Isolated |
Voltage – Output | 3.3V, 2.5V, 1.55V, 1.1V, 1.3V |
Current – Output | 1.2A, 1A, 800mA, 50mA, 50mA |
Voltage – Input | 3 ~ 5.5 V |
Frequency – Switching | – |
Power – Output | – |
Utilized IC / Part | TPS65020 |
Supplied Contents | Board, Software |
Lead Free Status | Contains Lead |
RoHS Status | RoHS Non-Compliant |
Bộ sản phẩm

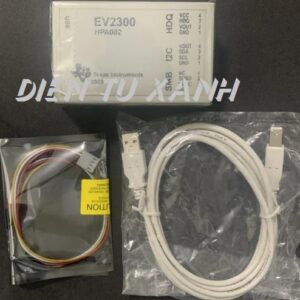

01. Board EV2300 HPA002 Texas Instruments
