Miêu tả Mạch đo tụ điện Cuộn cảm LC100A

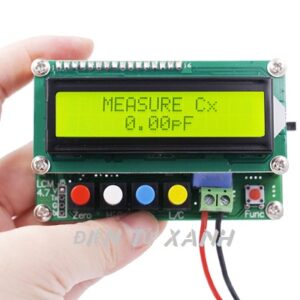

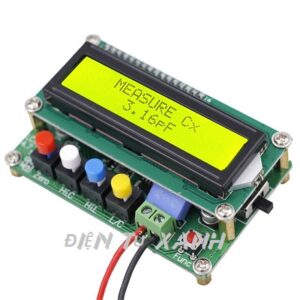

LC-100A Meter based on the LC resonant principle, add in high speed microcontroller’s precision computation. The meter has wide measurement range and high precision, it’s measuring range below 1uH and 1pF. Small size, light weight and easy to carry.
Chức năng
-
- Size: 8cm x 5cm x 2cm (L x W x H)
- Model: LC100-A
- Based on the L/C resonance principle
- High speed microcontroller’s precision computation
- Measuring range below 1uH and 1pF
- Supply power:+5v ,mini USB interface
- Measurement accuracy: 1%
- Capacitance measuring range: 0.01 pF – 10uF (The minimum resolution: 0.01 pF )
- Inductance measuring range: 0.001 uH – 100mH
- Big inductance measuring range: 0.001 mH – 100H (The minimum resolution: 0.001uH )
- Test frequency range: L/C about 500KHZ/Big inductance 500HZ
- Effective display digits: 4 digits
- LCD display mode: 1602
Function of five buttons:
-
- Red: Reset (Momentary Push Button)
- White: High Capacitance Hi.C Choice (Alternate Action)
- Blue: High Inductance Hi.L Choice (Alternate Action)
- Yellow: L/C (Alternate Action)
- Red Mini: Function button
- Details as follows (Press “1”, Release “0”, “X” random)
Test Frequency
-
- L Range, C Range: 500kHz
- Hi.L Range: 500Hz~50KHz
- Resolution (Hi.C Range): 0.01uF
- Resolution (Hi.L Range): 0.001mH
- Resolution (L Range): 0.001uH
- Resolution (C Range): 0.01pF
Note:
1. Please reset to “0” before testing a capacitance or an inductance, or errors may be appeared. Even if “0” displayed before measuring, resetting to “0” is needed.
2. At the time of resetting to “0”, when “CALCULATING…OK” appears, please keep holding button for 2 to 3 seconds, and “<DATA SAVED>” will be displayed. Now release button.
3. DO NOT Reset to “0” while components are being measured. If you do it, please shut down immediately and restart, then reset to “0”.
4. The test time of a large capacitance (above 10mF) may be as long as seven to eight seconds (100mF).
5. DO NOT measure a capacitance which is not discharged, otherwise it may damage the meter.
6. DO NOT Use different (Longer) test leads other than those supplied Longer Leads can affect the accuracy of the meter
