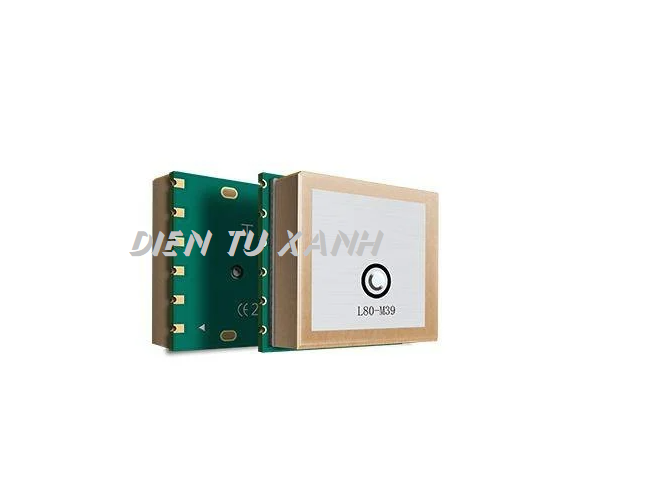

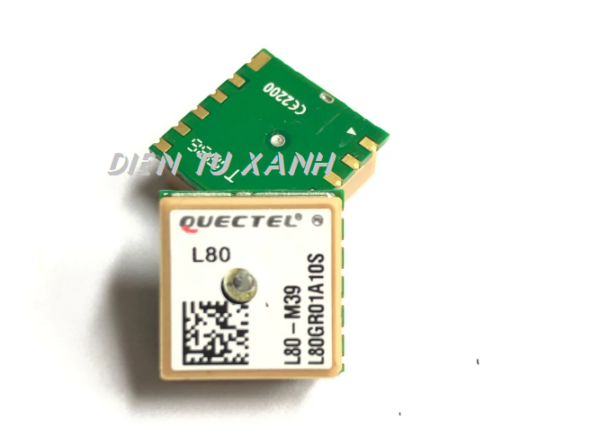

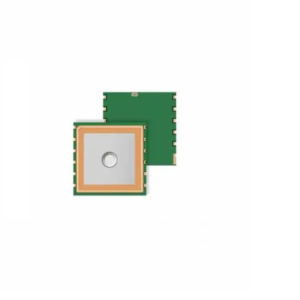

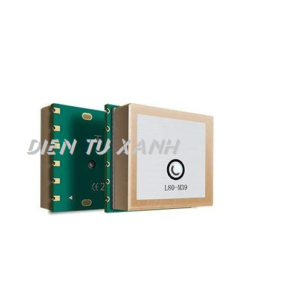

Miêu tả module GPS Quectel L80-M39
- L80-R is an ultra compact GPS POT (Patch on Top) module with an embedded 15.0mm × 15.0mm × 4.0mm patch antenna.This space-saving design makes L80-R the perfect module for the miniature devices. Adopted by LCC package and integrated with patch antenna, L80-R has exceptional performance both in acquisition and tracking.
Combining advanced AGPS called EASY™ (Embedded Assist System) technology, L80-R achieves the highest performance and fully meets the industrial standard. EASY™ technology ensures L80-R can calculate and predict orbits automatically using the ephemeris data (up to 3 days) stored in internal RAM memory, so L80-R can fix position quickly even at indoor signal levels with low power consumption. With its compact design, high precision and sensitivity, L80-R is perfectly suitable for a broad range of M2M applications such as portable device, automotive, personal tracking, security and industrial PDA, especially suitable for special applications, like GPS mouse and OBD.
Đặc tính kỹ thuật Module GPS Quectel L80-M39
TYPE | DESCRIPTION |
Category | RF/IF and RFID |
RF Transceiver Modules and Modems | |
Mfr | Quectel |
Package | Tape & Reel (TR) |
Cut Tape (CT) | |
Digi-Reel® | |
Part Status | Active |
RF Family/Standard | Navigation |
Protocol | Galileo, GLONASS, GPS, GNSS |
Frequency | 1.575GHz, 1.601GHz |
Data Rate | 115.2kbps |
Sensitivity | -167dBm |
Serial Interfaces | UART |
Antenna Type | Integrated, Ceramic Patch |
Voltage – Supply | 3V ~ 4.3V |
Mounting Type | Surface Mount |
Operating Temperature | -40°C ~ 85°C |
Package / Case | 12-SMD Module |
Base Product Number | GPS Quectel L80-M39 |
Tài liệu module Module GPS Quectel L80-M39
01. Hardware Design
