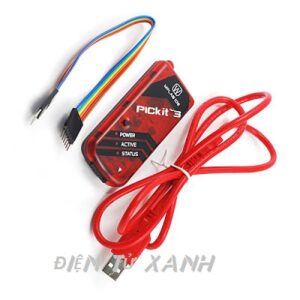

PICkit 3 In-Circuit Debugger

Miêu tả PICkit 3 In-Circuit Debugger

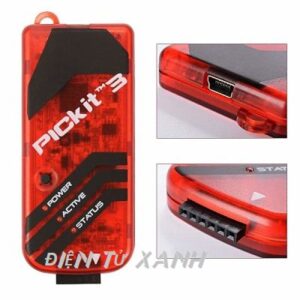

This is the new PICkit 3 from Microchip. If you want an official programmer from Microchip, this is it! The PICkit 3 allows debugging and programming of PIC and dsPIC microcontrollers using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE) and the latest MPLAB X IDE too. The MPLAB PICkit 3 is connected to a PC using a full speed USB interface and can be connected to the target via standard Microchip 6-pin 0.1″ inline header. The UIC-A will do the conversion from PICKIT 3 to UIC00B or even to ICD 2 standard connection. The connector uses two device I/O pins and the reset line to implement in-circuit debugging and In-Circuit Serial Programming. miniUSB cable included…

As is has a USB 2.0 port onboard so you can just plug it in the PC and download the programming or debugging software you are planning to use and start working on it. Make sure you connect the correct pins from the output port to the Microcontroller you are using.

Tính năng sản phẫm

• USB (Full speed 12 Mbits/s interface to host PC)
• MPLAB IDE compatible (free copy included)
• Built-in over-voltage/short circuit monitor
• Firmware upgradeable from PC/web download
• Fully enclosed
• Supports low voltage to 2.0 volts (2.0v to 6.0v range)
• Diagnostic LEDs (power, busy, error)
• Read/write program and data memory of microcontroller
• Erase of program memory space with verification
• Freeze-peripherals at breakpoint

Gói sản phẫm

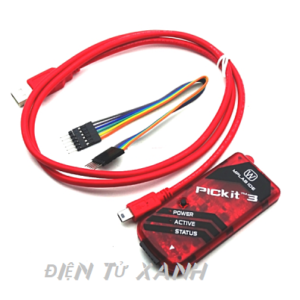

• 1 x PICKit3

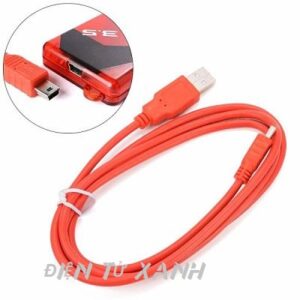

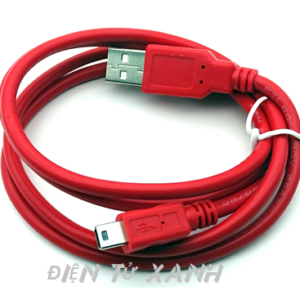

• 1 x USB miniB Cable

Video hướng dẫn

Tài liệu và software

• PICkit3 User’s Manual
• Using PICkit3 in MPLABX
• PICkit3 Microchip Product Page
• How to User PICkit3 to upload code to PIC MCU by Microcontrollers Lab
