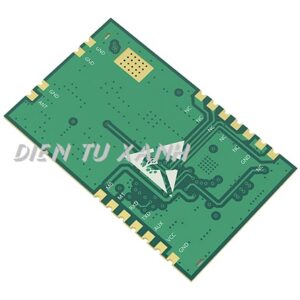

Name: Module Lora E22-400T33S UART 433mhz 16km
SKU: Module Lora E22-400T33S
Availability: InStock

480.000₫

Module Lora E22-400T33S: Tần số hoạt động 410,125~493,125 MHz, đầu ra mức TTL và tương thích với điện áp cổng IO 3,3V và 5V, khoảng cách lên đên 16km.

còn 500 hàng

Mã sản phẩm: Module Lora E22-400T33S Danh mục: Âm thanh & Khuếch đại Amply, Các loại RF khác, Linh kiện - Phụ Kiện RF, Module - Mạch Điện, RF 433/868, Xem tất cả Thẻ: E22-400T33S, E22-400T33S UART 433mhz Relay networking lora, Ebyte, LORA, Module Lora E22-400T33S, RF

Miêu tả Module Lora E22-400T33S

E22-400T33S is a wireless serial port module (UART) based on SEMTECH’s LoRa solution, with an operating frequency of 410.125~493.125MHz (default 433.125MHz), TTL level output, and is compatible with 3.3V and 5V IO port voltages.

Đặc tính kỹ thuật

[Product size]：25*40.5mm
[Communication distance]：16km
[Transmit power]：33dBm
[Carrier frequency]：410.125~493.125MHz
[Product weight]：5.8±0.1g

Main parameter	Min.	Typ.	Max.	Unit	Remark
Operating voltage	3.3	5.0	5.5	V	≥5.0 V ensures output power
Communication level	–	3.3	–	V	For 5V TTL, It is recommended to add level conversion
TX current	–	1000	–	mA	Instant power consumption
RX current	–	13	–	mA	–
Sleep current	–	2	–	μA	Software is shut down
Operating temperature	-40	–	+85	℃	–

Operating parameter	Performance	Remark
Operating frequency	410.125~493.125MHz	Support ISM band
Tx power	33 dBm	–
Receiving sensitivity	-128dbm	Air data rate is 2.4kbps
Air data rate	2.4k~62.5kbps	Controlled via user’s programming
Distance for reference	1600m	Test condition：clear and open area, antenna gain: 5dBi，antenna height: 2.5m，air data rate: 2.4kbps
Size	25*40.5 mm	–
Antenna	IPEX/stamp hole	50 ohm impedance
Communication interface	UART	–
Package	SMD	–
