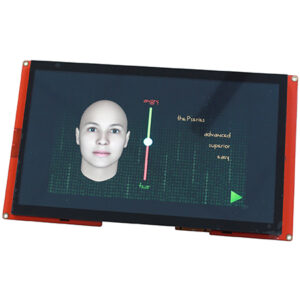

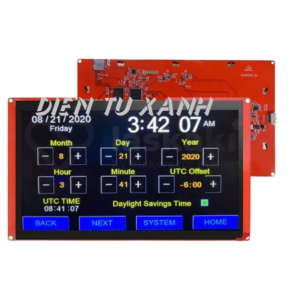

Nextion LCD NX1060P101-011C-I 10.0 INCH
3.950.000₫
NX1060P101-011C-I: Nextion NX1060P101-011C-I The Intelligent Series products have more powerful hardware in terms of MCU, Flash storage and SRAM compared with Basic Series and Enhanced Series..
ĐẶC ĐIỂM MÀN HÌNH NX1060P101-011C-I
-
Nextion NX1060P101-011C-I is a Human Machine Interface （HMI） solution combining an onboard processor and memory touch display with Nextion Editor software for HMI GUI project development. Using the NEXTION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider etc.) and ASCII text based instructions for coding how components interact at display side. Nextion HMI display connects to peripheral MCU via TTL Serial (5V, TX, RX ,GND) to provide event notifications that peripheral MCU can act on, the peripheral MCU can easily update progress and status back to Nextion display utilizing simple ASCII text based instructions.
The Intelligent Series products have more powerful hardware in terms of MCU. Flash storage and SRAM compared with Basic Series and Enhanced Series. What’s more and new?. The audio, video and animation play functions enriches user’s project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent component, page loading effect, component Move and Drag .etc.
Package includes: Nextion NX1060P101-011C-I HMI Display*1, XH2.54 4P wire*1, power supply test board*1.
Note: the small power supply test board and connecting wire inside the package allow you to test if the electrical supply is enough or not. See the image below on how to use it.
ĐẶC TÍNH KỸ THUẬT
| Data | Description | |
| Color | IPS 65K 65536 colors | 16 bit 565, 5R-6G-5B |
| Layout size | 258mm(L)×152mm(W)×11.5mm(H) | |
| Visual Area (V.A.) | 235.00mm(L)×143.00mm(W) | |
| Active Area (A.A.) | 222.72mm(L)×125.28mm(W) | |
| Resolution | 1024×600 pixel | Also can be set as 600×1024 |
| Touch type | Capacitor | |
| Touches | > 1 million | |
| Backlight | LED | |
| Backlight lifetime (Average) | >30,000 Hours | |
| Brightness | 300nit | 0% to 100%, the interval of adjustment is 1% |
| Weight | 505g |
KHẢ NĂNG LƯU TRỮ
| Memory Type | Test Conditions | Min | Typical | Max | Unit |
| FLASH Memory | Store fonts and images | 120 | MB | ||
| User Storage | EEPROM | 1024 | BYTE | ||
| RAM Memory | Store variables | 512 | KB | ||
| Instruction Buffer | Instruction Buffer | 4096 | BYTE |
CHỨC NĂNG AUDIO
| Speaker | Parameter | Min | Typical | Max | Unit |
| Power | – | 0.5 | – | 1.5 | W |
| Audio Connector Type：1.25T-2-2A (1.25mm pitch 2-pin housing) | |||||
CHỨC NĂNG GIAO TIẾP THIẾT BỊ BÊN NGOÀI
| Test Conditions | Min | Typical | Max | Unit | |
| Serial Port Baudrate | Standard | 2400 | 9600 | 921600 | bps |
| Output High Voltage (TXD) | IOH=1mA | 3.0 | 5.0 | Vin | V |
| Output Low Voltage(TXD) | IOL=-1mA | 0.1 | 0.2 | V | |
| Input High Voltage(RXD) | 3.0 | 5.0 | Vin | V | |
| Input Low Voltage(RXD) | -0.7 | 0.0 | 1.3 | V | |
| Serial Port Mode | 3.3V/5.0V TTL | ||||
| Serial Port | 4Pin_2.54mm | ||||
| USB interface | NO | ||||
| SD card socket | Yes (FAT32 format), support maximum 32G Micro SD Card * presence of *.tft file on microSD: socket is exclusive to upgrade Nextion firmware/HMI design * Intelligent Series only: see Instruction Set / Editor Guide for microSD card runtime usage |
||||
| Extended IO | 8 Digital extended GPIO | ||||
| IO0-IO7 support input, output and component binding event * IO pin / ports are not exclusive, limit current draw to 1mA recommended |
|||||
| IO6-IO7 support PWM | |||||
| RTC | built-in RTC support (Battery type: CR1220) | ||||
Vin: the input voltage of power supply
