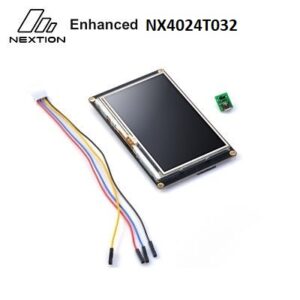

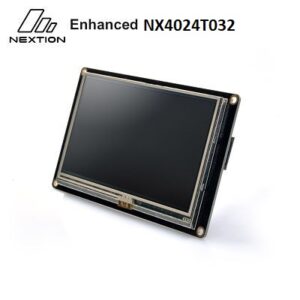

NX4024T032 – Màn hình 3.2 INCH TFT Nextion

ĐẶC ĐIỂM MÀN HÌNH NX4024T032

• Nextion Enhanced NX4024T032 are more powerful than the standard ones. Compare to the basic Nextion displays, the enhanced ones have added some new functions, such as: supporting built-in RTC, supporting save data to Flash, supporting GPIO, larger flash capacity and larger CPU clock.

What’s the difference between Enhanced Series and Basic Series?

• The Enhanced Series hardware feature of 3.5″ and above is more powerful than Basic Series in terms of MCU, Flash Storage and SRAM.
• The Enhanced Series integrates RTC for keeping accurate time, EEPROM for users’ data storage and 8 digital GPIOs (4 PWM capable).
• For Enhanced Series, users also can develop the HMI GUI project via the free Nextion Editor software, the easy Drag-and-Drop components and simple ASCII text based instructions will dramatically reduce the HMI project development workloads. The integration of RTC, EEPROM and digital GPIOs enhances your HMI project features and functions.

CHỨC NĂNG SẢN PHẪM

• NX4024T032 400 x 240 Resolution
• RGB 65K true to life colours
• TFT screen with integrated resistive touch panel
• 4 pin TTL serial interface
• 4M Flash memory for User Application Code and Data
• On board micro-SD card slot for firmware upgradation
• Visual Area: 57.6mm(L)×43.2mm(W)
• Adjustable Brightness: 0~180 nit, the interval of adjustment is 1%
• 5V65mA power consumption
• Compatible with Raspberry Pi A+, B+, Pi 2, Pi 3, Arduino.
• Certificates: CE/EMC, RoHS (certificates)
