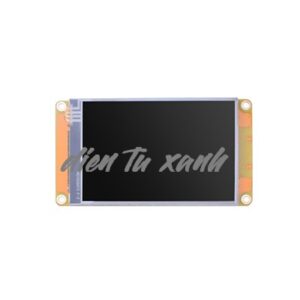

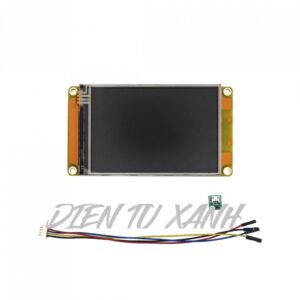

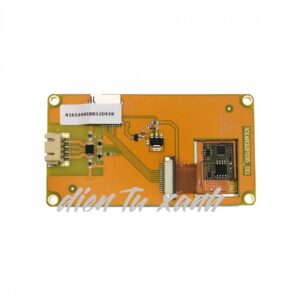

NX4832F035 – Màn hình 3.5 INCH TFT Nextion
880.000₫
NX4832F035: The Nextion Discovery Series MCU clock speed is 64 MHz which is more powerful than the Basic Series. There are 2.4”, 2.8“, 3.5” HMI display size options for your choice.
ĐẶC ĐIỂM MÀN HÌNH NX4832F035
The Nextion Discovery Series MCU clock speed is 64 MHz which is more powerful than the Basic Series. There are 2.4”, 2.8“, 3.5” HMI display size options for your choice.
Compared with Basic Series, the Discovery Series has a better MCU performance, with the new image compression technique, the Discovery Series allows more pictures in the same amount of flash compared to Basic and Enhanced models. The operating current of deep sleep mode is as low as 0.25mA which makes the Discovery Series displays more suitable for battery-powered projects.
You can develop the HMI GUI project via the free Nextion Editor software, the easy Drag-and-Drop components and simple ASCII text-based instructions will dramatically reduce your HMI project development workloads.
The Nextion solution is the best balance HMI solution between cost and benefit with a low and decreased learning curve.
CHỨC NĂNG SẢN PHẪM
- SD Card interface: support max 32G Micro TF/SD card (FAT32 file format)
- Flash data storage space: 16MB
- RAM: 3584 bytes
- Instruction buffer: 1024 bytes
- Color: 64K (65536) colors
- Resolution: 480×320 pixel
- Adjustable Brightness: 0~230 nit- the interval of adjustment is 1%
- Certificates: CE/EMC, RoHS (certificates)
THÔNG SÔ KỸ THUẬT
| Brand | Nextion |
|---|---|
| Model | NX4832F035 |
| Display Size | 3.5″ |
| Resolution | 480*320 |
| Touch Panel | RTP |
| MCU | 64 MHz |
| Flash | 32 MB |
| SRAM | 3584 Byte |
| GPIOs | |
| RTC | |
| Input Power | DC 5V 2A |
| USART Port | XH2.54 4P |
| Storage Temperature | -30 ~ 85 °C |
| Working Temperature | -20 ~ 70 °C |
| Nextion Editor Components | Text, Scrolling Text, Number, Xfloat, Button, Progress Bar, Picture, Crop, Hotspot, TouchCap, Gauge, Waveform, Slider, Timer, Variable, Dual-state Button, Checkbox, Radio, QRcode |
| Character Encoding | ascii, utf-8, iso-8859-1~15, gb2312, ks_c_5601-1987, big5, windows-874/1255/1256/1257/1258, koi8-r, shift-jis |
| Anti-aliasing font | Yes |
Notes: Nextion product numbering rules , eg. NX3224F024
- NX – Nextion
- 32 – Horizontal resolution: 32-320 40-400 48-480 80-800 10-1024
- 24 – Vertical resolution: 24-240 27-272 48-480 60-600
- F – Series model: T=Basic series, F=Discovery series, K=Enhanced series, P=Intelligent series
- 024- Display size: ”024″ means 2.4″
- All Discovery Series products are resistive touch panel type
VIDEO HƯỚNG DẪN LÀM QUEN CẤU HÌNH
TÀI LIỆU LIÊN QUAN
| Cân nặng | 1 kg |
|---|---|
| Kích thước | 30 × 30 × 5 cm |
