MIÊU TẢ MÀN HÌNH Weintek LCD MT6071iP HMI 7 Inch

Weintek LCD MT6071iP HMI 7 inch is a 7-inch industrial Human Machine Interface (HMI) featuring an 800 × 480 TFT LCD, slim and compact design, and a fan-less cooling system for reliable long-term operation in industrial environments.

The MT6071iP supports common industrial communication interfaces such as RS-232, RS-485, and Ethernet, making it suitable for a wide range of automation, machine control, and monitoring applications.
Its front panel complies with NEMA4 / IP65 standards, providing protection against dust and water splashes.

The HMI is programmed using EasyBuilder Pro software and optionally supports EasyAccess 2.0 for remote monitoring and control.

Key Features:

• 7″ TFT LCD, 800 × 480 resolution

• Slim design, compact structure

• Fan-less cooling system for enhanced durability

• COM2 RS-485 (2W/4W) supports MPI 187.5K

• Built-in power isolation for improved system safety

MIÊU TẢ THÔNG SỐ KỸ THUẬT

🔸 Display

• Display type: 7″ TFT LCD

• Resolution: 800 × 480

• Brightness: 450 cd/m²

• Contrast ratio: 500:1

• LED backlight, lifetime > 30,000 hours

• Color depth: 16.7 million colors

• Viewing angle (T/B/L/R): 60° / 70° / 70° / 70°

• Pixel pitch: 0.1926 (H) × 0.179 (V) mm

🔸 Touch Panel

• Type: 4-wire resistive touch panel

• Accuracy: ±2% of active area (X/Y)

🔸 Memory & Processor

• Processor: Dual-core RISC

• Flash memory: 256 MB

• RAM: 128 MB

🔸 Communication & I/O

• USB Host 2.0 × 1

• Ethernet 10/100 Base-T × 1

• COM1: RS-232 (4-wire)

• COM2: RS-485 (2-wire / 4-wire)

• Built-in RTC

🔸 Power

• Input power: 24 VDC ±20%

• Power consumption: 450 mA @ 24 VDC

• Built-in power isolation

• Voltage withstand: 500 VAC (1 minute)

• Insulation resistance: >50 MΩ @ 500 VDC

🔸 Mechanical

• Enclosure: Plastic

• Dimensions (W × H × D): 200.4 × 146.5 × 34 mm

• Panel cutout: 192 × 138 mm

• Weight: Approx. 0.52 kg

• Mounting method: Panel mount

🔸 Environment

• Front panel protection: NEMA4 / IP65

• Operating temperature: 0 ~ 55°C

• Storage temperature: -20 ~ 60°C

• Relative humidity: 10% ~ 90% RH (non-condensing)

• Altitude: Below 3,000 m

• Vibration endurance: 10–25 Hz, 2G (X/Y/Z directions)

🔸 Certification & Software

• Certification: CE

• Programming software: EasyBuilder Pro

• EasyAccess 2.0 support (optional)

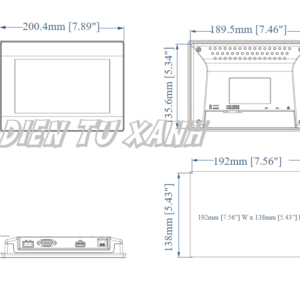

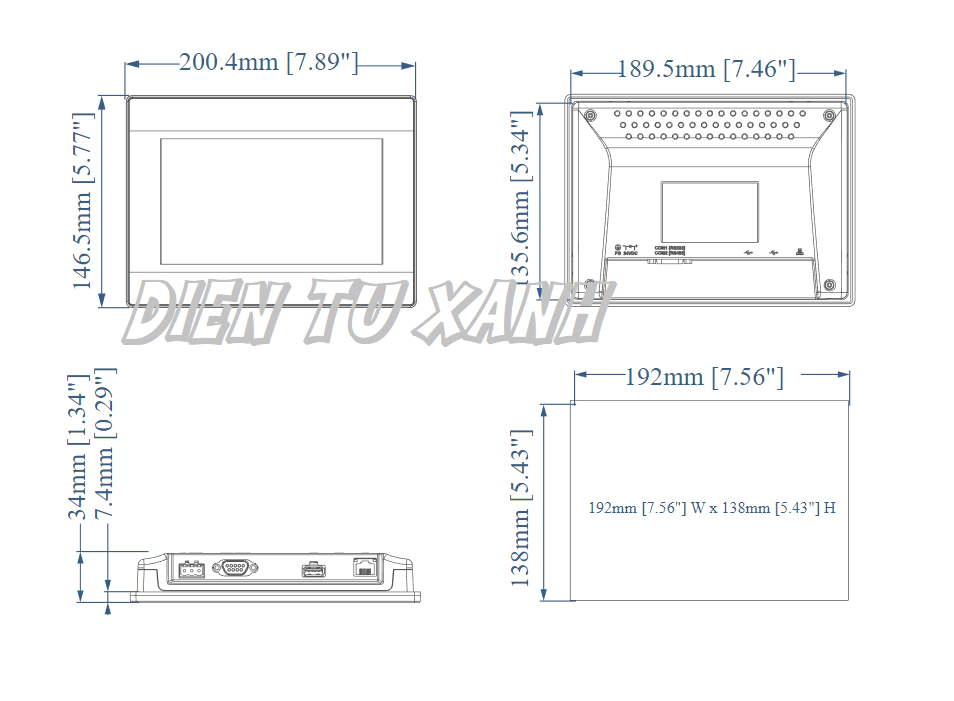

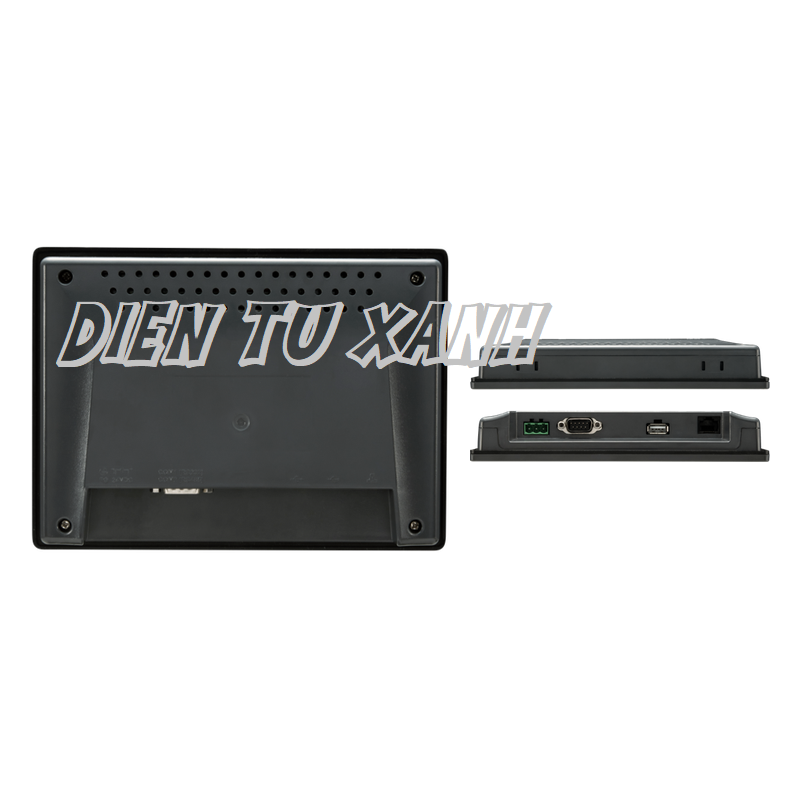

KÍCH THƯỚC VÀ MÔ TẢ NGOẠI VI
