TX433-XP-200 Suction Cup Antenna 4DB EBYTE

MIÊU TẢ TX433-XP-200 Suction Cup Antenna 4DB EBYTE

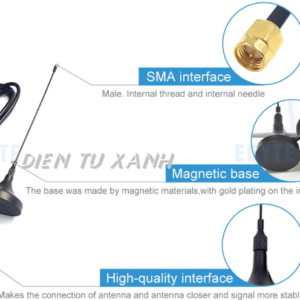

• TX433-XP-200 is a 433MHz sucker antenna. Height of the antenna is 190mm. With a SMA-J interface (SMA inner screw thread and inner needle) and a powerful magnet base, it can stick tightly to the metal surface and be applied to such devices with frequency of 433MHz as wireless module, data transmission radio, remote control and so on.

Note: This module can connect to RF modules running at 433Mhz frequency for example LoRa6100II or Board LoRa6100II, E22-400T30S UART 433mhz 10km, Module Lora E22-400T33S UART 433mhz 16km, Module Lora E22-400T30S DTX UART 433mhz 10km, Module Lora E32-433T20D UART 433mhz 3km…

• Antenna frequency shall be matched with that of the wireless devices, or the communication will be affected;
• Diffraction performance will be better with lower communication frequency and longer wave;
• Communication distance will be shorter if there is any straight-line barrier;
• Please be noted of the antenna radiation Incorrect direction by installation will result in short communication distance;
• As radio wave may be absorbed by the ground, result will be affected if tested close to It is suggested to test at a higher place;
• As radio wave can be highly absorbed by the ocean water, result will be affected if tested close to the sea;
• Signal will be seriously weakened if the antenna is put close to metal or inside metal shell;
• Lower impedance matching of antenna and communication devices will result in bad
